5. LED Indicators

On the front of the SoloCAT HD™ chassis there is a horizontal

block of four (4) green LED’s that is marked “Status” on the

chassis just above the LED’s. From Left to Right this is an

explanation of their activity:

1. #1 LED indicates normal operations and will flash

once a second with HDCP pass through.

2. #2 LED indicates a valid link between the transmitter

and receiver.

3. #3 LED HDMI mode

4. #4 LED power indicator

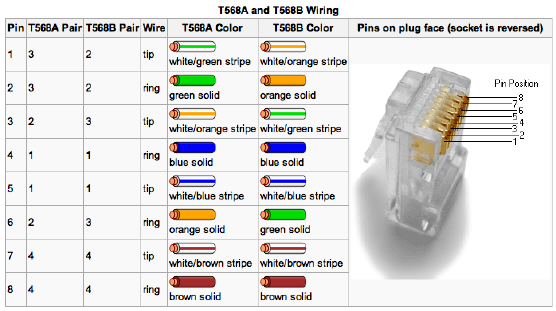

EIA/TIA-568-B termination is highly

recommended for best results
