1. VideoReQuest and Direct RS-232

Control of Switches and Receivers

VideoReQuest with a Zektor or Key Digital Switch

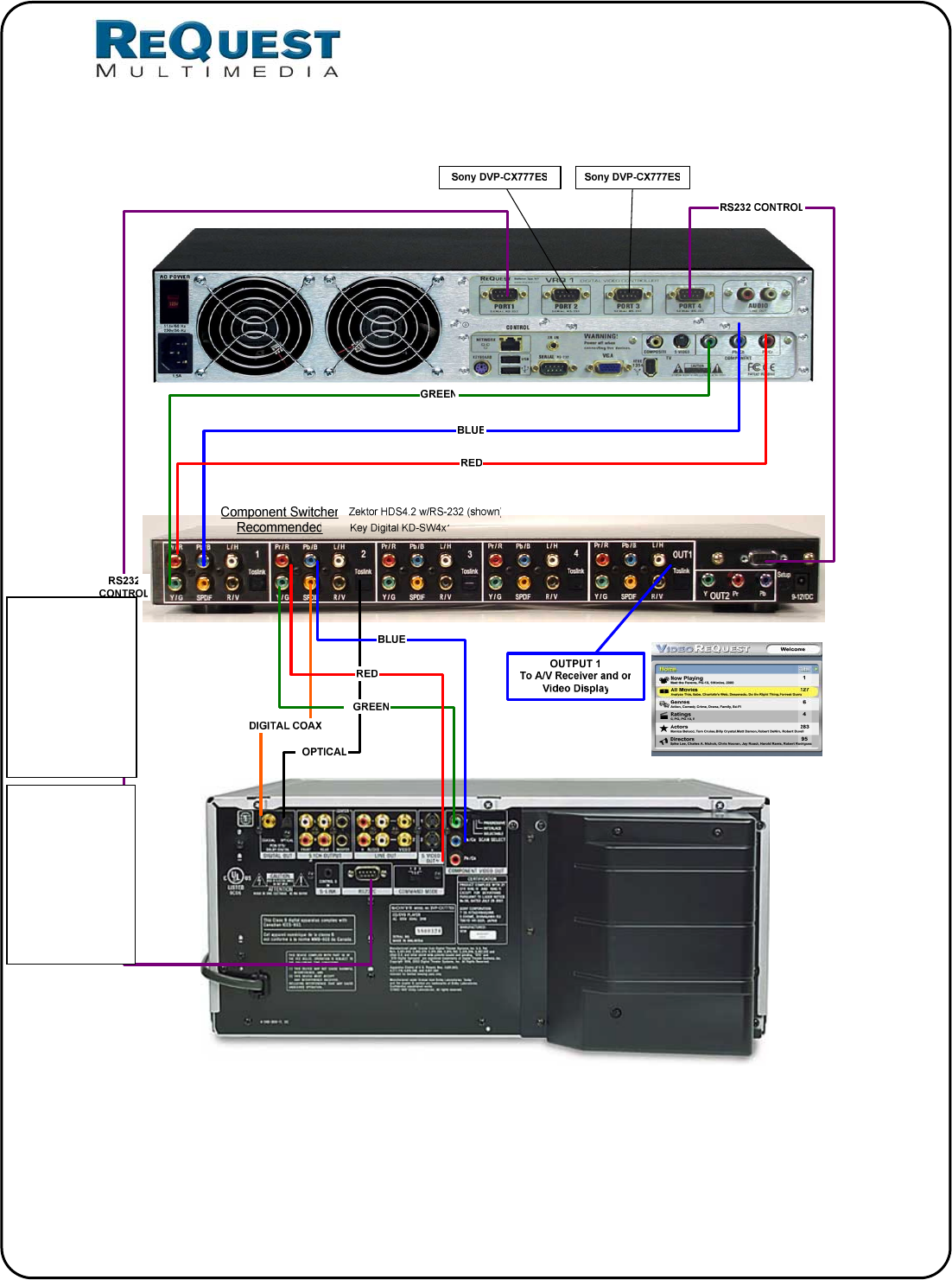

1) Connect the VideoReQuest Audio and Video to Input 1 of the switch.

2) Connect 1-3 DVD Changers’ Audio and Video to Inputs 2-4.

3) Connect the RS-232 cable from the DVD changers to ports 1 – 3 of the

VideoReQuest.

4) Connect Port 4 of the VideoReQuest to the RS-232 Port of the switch.

5) In the VideoReQuest Menu, go to Video Switch setting to set the appropriate

switch.

Zektor Switch

Pro:

Quality

Con:

No Composite

or S-Video

Inputs

KDS Switch

Pro:

Inexpensive

Con:

No optical,

Composite or

S-Video Inputs
